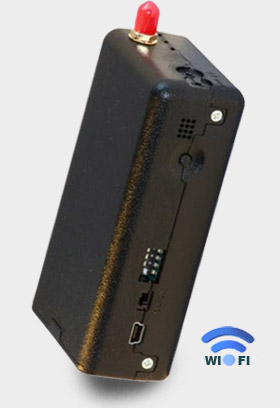

WMRS-102 is an advanced, professional, Wi-Fi multimedia streaming/ recording device which broadcasts live high quality video and two way audio from anywhere using Wi-Fi networks or LAN. The unit can be monitored and controlled from any location globally using the MRS software suite, via PCs/ laptops/ smart phones/ tablets. The unit has a built in Wi-Fi module and supports 1 video channel.
The WMRS-102 Unit is a portable, handheld device (wearable) and is designed for bodyworn applications (where a Wi-Fi network is present) such as: policemen, security guards and others. The visual point of view of personnel can be monitored live from any remote location. The unit's small size provides an excellent solution for hidden security in houses & businesses. The system is designed for streaming media from any area located within a Wi-Fi network.
WMRS-102 is optimised for Wi-Fi networks and provides stable video streaming at the highest available quality, without visable performance lag (low latency). The system is designed for streaming in low network bandwidth environments and is tolerant of packet failure when Wi-Fi reception is low. The unit is very small in form (5 x 10 x 2.8 cm) and uses very low power (5V). The unit has a built in rechargeable lithium battery which can feed power to any 5V analogue Camera for portable use and allows for 4.5 hours of video streaming without being connected to an external power source. Any analogue PAL/NTSC camera can be connected to the unit.
Portable Wi-Fi SystemThe WMRS-102 unit is a handheld wearable solution (5 x 10 x 2.8 cm), and is designed and optimised for Wi-Fi networks. |
1x Video ChannelThe unit features 1 RCA video input channel. Any Analogue PAL/NTSC camera can be connected to the unit for live video streaming. |
|||
Two way audioWMRS-102 supports two way VOIP (Audio In/Out streaming), which allows voice communication between the unit and any connected PC/ Laptop/ Smart phone. The unit has a built-in microphone and speaker, however external audio peripherals can be attached to the unit as well. |
Video CompressionThe system uses a high performance DSP based video CODEC (H.264/ .FLV), allowing you to stream live video at the highest available quality over wireless mobile networks (low latency). |
|||
Built-in Wi-Fi ModuleThe unit has a built-in Wi-Fi module which provides simple setup and operation (supports 802.11 b/g/n). |
Dual Video EncodersWMRS-102 has dual video encoders which allows the unit to live stream and record video at separate bit rates and frame rates. This feature can help with reducing mobile data consumption. |
|||
LANThe WMRS-102 has a built-in LAN interface for streaming live media via any local area network to any location. An Ethernet cable is included with the unit. |
RecordingThe unit's live video/ audio/ GPS streams can be recorded inside the unit on a Micro SD card, remotely on the server, or from any location gloabally using MRS monitoring clients (PC's, Laptops, smart phones) via the internet. |
|||
Visual Motion DetectionThe WMRS-102 has built-in Visual Motion Detection (VMD), which can be activated on any camera connected to the unit and can be set to trigger a variety of actions, such as video streaming, recording and others. |
GPIOThe WMRS-102 has 8 built-in GPIO ports (4 Input Sensors/ 4 Output Switches) for external peripheral devices. The GPIO ports can be set to trigger a variety of actions such as: video streaming, recording and others. |
|||
PTZ ControlThe WMRS-102 has built-in RS-485 ports (T+/ T-) which support PTZ cameras using Pelco D protocol. The system allows you to control the Pan, Tilt and Zoom functions of the supported PTZ camera, live from any location. |
SMSThe unit can send SMS alerts to any number of mobile phones, as a result of various alarms being triggered such as: VMD and GPIO/ Alarm Button. Supported mobile phones can also receive images of the video stream. |
|||
Automatic Bandwidth ControlThe unit features automatic bandwidth control, which will automatically decrease the bit rate and frame rate of the video channel (if they are set to high), in order to support the mobile network bandwidth. |
Alarm ButtonThe unit has a built-in alarm-button which can be pressed by personnel in the case of an event or emergency. The Alarm Button can be set to trigger a variety of actions such as: video streaming, recording and others. |
|||
StorageThe WMRS-102 has a Micro SD slot for onboard device
video/ audio recording. The unit supports capacity of up to 256GB |
BatteryThe unit has a built-in 4200mAh rechargeable lithium battery. With a full battery, the unit can stream video for about 4.5 hours, without a power supply being connected - Depending on use. |
|||
Encryption CapabilitiesThe WMRS system supports secure data transfer encryption between the unit, server and any clients in the network. Recorded files can be encrypted as well. |
Low PowerWMRS-102 uses low power and has a 5V DC power input for charging. The unit can easily be connected to an external solar power source as well. |
The MRS Software Suite is an advanced complete software solution comprising of server/ client/ configuration programs for setting up, configuring, monitoring and controlling MRS devices live from any location around the world. The monitoring application (MRS Monitor) combines video, audio and GPS streaming in one user friendly application. Some of its features and capabilities include:
The MRS system has 2 major architectures:
This architecture is based on a server with a fixed IP address. Multiple units can communicate with the server as well as multiple clients. All clients are connected to the server only and have viewing and control capabilities.
In this configuration, the server coordinates a signal from the unit directly to the client without stopping at the server. This architecture is ideal for servers that have low bandwidth capabilities.
The MRS architecture is based on a MRS server which can reside either on an Internet fixed IP, VPN or inside the unit. The MRS architecture was designed specifically for multi unit, long distance environments such as wireless cellular networks. MRS has real time bandwidth control capability and is very tolerent of packet failure. Below is a diagram of Server Based Architecture:
